A PRV Station (Pressure Reducing Valve Station) is a part of a steam or gas distribution system where the pressure of steam or gas is reduced to a safe and manageable level for further use in downstream equipment, such as heating systems, turbines or industrial processes.

The primary function of a PRV Station is to:

  1. Reduce High Pressure – The station contains pressure-reducing valves (PRVs) that lower the high incoming steam or gas pressure to a desired, lower and safe operating pressure.
  2. Maintain Pressure Control – The PRV Station ensures that the system operates within the set pressure range, even when the incoming pressure fluctuates.
  3. Flow Regulation – It can also regulate the flow rate to ensure a consistent supply of steam or gas to downstream equipment without overloading the system.

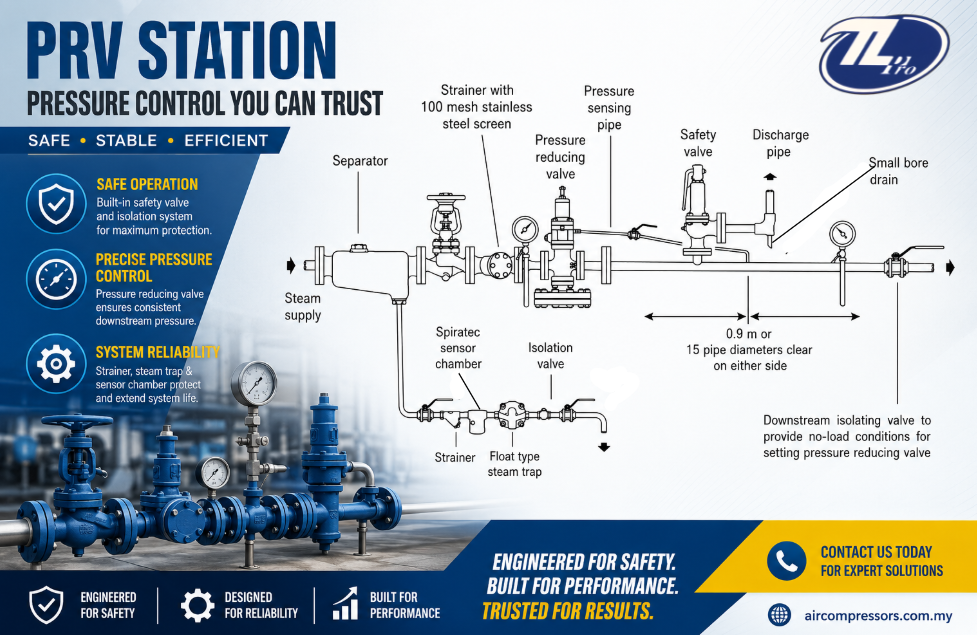

Components of a PRV Station:

  1. Pressure Reducing Valve (PRV) – The core component that reduces the incoming high pressure to a lower, controlled pressure.
  2. Bypass Valve – A valve that allows the steam or gas to bypass the PRV if maintenance or adjustments are required.
  3. Strainers/Filters – To remove debris or contaminants from the steam or gas to protect downstream equipment and valves.
  4. Pressure Gauges – Used for monitoring the incoming and outgoing pressures to ensure the system is operating within the desired limits.
  5. Safety Valve/Relief Valve – A safety feature that will open if the pressure in the station exceeds a safe level, preventing damage.
  6. Control System – Some PRV stations are equipped with automation or control systems that monitor and adjust pressure settings to optimize the system’s performance.

Applications:

  • Steam Systems – In industrial plants, power stations and HVAC systems, PRV stations are used to regulate the pressure of steam before it’s used for heating, processing or power generation.
  • Gas Distribution – They are also used in natural gas pipelines to reduce the pressure for distribution to homes and businesses.

Overall, PRV stations play a crucial role in maintaining safe and efficient operation by ensuring that pressure levels are controlled and consistent throughout the system.
